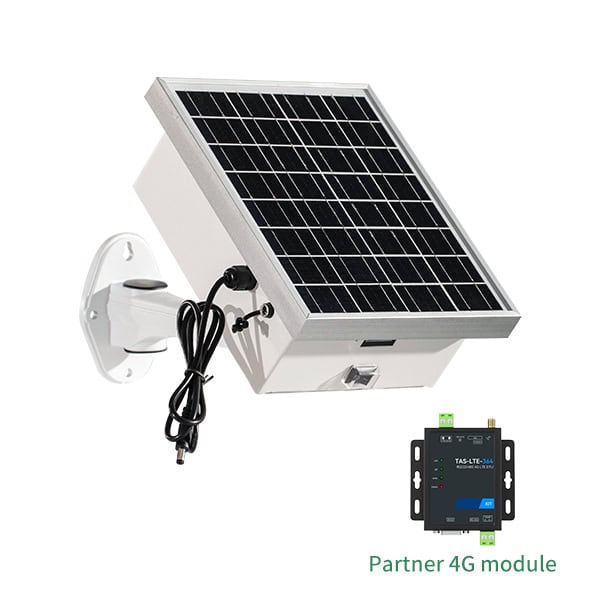

PN Series Outdoor Solar Power System
TecDeft‘s PN Series outdoor solar power system is specifically designed for remote monitoring and data acquisition applications. It combines efficient solar power generation with a dedicated equipment compartment in a compact, weatherproof unit. This innovative pro outdoor solar power system features an 8W or 15W solar panel integrated with an NMC lithium battery (11.1V 8Ah or 10Ah) and a PWM controller, providing a stable and continuous energy source for critical field equipment.
The PN Series offers a spacious 200x160x80mm internal compartment specifically designed to house RTUs, DTUs, data loggers, or other monitoring devices. With flexible mounting options and an external charger input, this outdoor solar power system ensures complete off-grid power and protection for your essential monitoring infrastructure in any remote environment.
Key Features & Benefits
1. Integrated Equipment Compartment
→ 200x160x80mm dedicated space accommodates standard RTUs, DTUs, and data loggers.
→ Secure and protected housing keeps valuable monitoring equipment safe.
→ Reduces installation complexity by eliminating the need for separate enclosures.
2. Reliable NMC Battery Power
→ NMC lithium battery provides high energy density in a compact form.
→ Available in 11.1V 8Ah or 10Ah options (89Wh or 111Wh) for extended operation.
→ External charger input allows backup charging when solar input is insufficient.
3. Flexible Power Management
→ PWM controller provides efficient battery charging and protection.
→ Multiple output voltages (5V/12V selectable) support various device requirements.
→ Weatherproof design protects both power system and connected devices.
4. Versatile Mounting Options
→ Adjustable-angle bracket for optimal solar panel positioning.
→ Pole or wall mounting flexibility for different installation scenarios.
→ Compact structure minimizes installation space requirements.
Technical Superiority
| Component | Specifications |
|---|---|
| Solar Panel | 8W/15W Monocrystalline, ≥19% Efficiency |
| Battery (NMC Lithium) | 11.1V 8Ah (88.8Wh) / 11.1V 10Ah (111Wh) |
| Output Interfaces | 5.5×2.1mm DC, USB-C, Micro-USB, USB 2.0 (Selectable) |
| Output Voltages | 5V/12V (Selectable) |
| Controller | PWM Charge Controller |
| Equipment Compartment | IP66-Rated, Device Compartment (200×160×80mm) |
| Charging Input | External Charger Port (Optional) |
| Operating Temperature | -20°C to 60°C |
| Mounting Options | Pole Mount, Wall Mount with Adjustable Bracket |
| Bracket | One-Piece Die-Cast Aluminum (Seamless IP66 Design) |
| Color Options | White |
the specs didn’t suit your requirments, find more products here!
Applications & Compatible Devices
→ Environmental Monitoring: Weather stations, air quality sensors, and water quality monitors powered by the pro outdoor solar power system for continuous remote operation.
→ Industrial IoT: RTU/DTU devices, data loggers, and industrial sensors benefit from the compact and durable outdoor solar power system design.
→ Agricultural Technology: Ideal for soil moisture sensors, irrigation controllers, and crop monitoring setups.
→ Research & Education: Perfect for powering field research instruments and environmental study devices in off-grid areas.
Why Choose PN Series?
→ Space Optimization: Combines power supply and equipment housing in a single compact unit.
→ Installation Simplicity: Pre-wired and factory-tested system reduces deployment time and effort.
→ Reliable Performance: Built with industrial-grade components to ensure long-term stability.
→ Cost Effective: Eliminates the need for separate solar power and equipment enclosures, making it a smart pro outdoor solar power system choice.
FAQ
Q: What size RTU/DTU can the compartment accommodate?
A: The 200x160x80mm compartment fits most standard RTUs, DTUs, and data loggers used in industrial and environmental monitoring applications.
Q: Can I charge the system without solar power?
A: Yes. The external charger input allows you to charge the battery using grid power or a generator when sunlight is limited.
Q: How long can it power a typical RTU device?
A: A 10Ah battery can typically power a 2W RTU device for about 55 hours without solar input, and indefinitely with adequate sunlight.
Q: Is the equipment compartment weatherproof?
A: Absolutely. The entire unit features IP65-rated protection, keeping both the outdoor solar power system and your valuable equipment safe from harsh weather.
Call to Action
Simplify Your Remote Monitoring Installations.
Contact us to discuss your specific RTU/DTU requirements and learn how our pro outdoor solar power system can enhance your project’s reliability and performance.
